Product Description

Technical parameters:

model	thrust	speed	push distance	motor model
700	1000	M60	90	Y90L-6

Introduction:
The electric actuator is a reciprocating actuator driven by a motor. It is suitable for all linear motion which needs
reciprocating and pushing. It can swing and rotate by means of other connecting rods. It has overload
protection (mechanical and electrical overload protection) It is widely used in metallurgy, electric power, coal,
chemical and other industries. It is widely used in metallurgy, electric power, coal, chemical industry and so on,
with the advantages of light weight, strong pulling force, low noise, low energy consumption and convenient
installation and maintenance. , Especially for long-distance, high-altitude and dangerous situations instead of
hydraulic, pneumatic devices, can be operated separately on-site and centralized control.
Because the nut is fixed relative to the push rod, the screw moves the push rod linearly along the guide rail in
the guide sleeve so as to make the push rod reciprocate. As a result, Push and pull action.

Our company produced the DT type, HDG series of electric putt (electric cylinder). Push (pull) force from
0.25KN to 50KN; push and pull stroke speed were 25mm / s, 42mm / s, 84mm / s. Is a smooth and accurate
action, reliable performance, and has built-in overload protection of the mechanical rotation device. In a very
wide range of areas can replace or replace the cylinder, the cylinder, especially in high temperature, fire,
explosion-proof, pollution-free environmental conditions, is an indispensable supporting equipment.
The series, the specifications of the push and pull stroke size or speed (0-100mm / s) can be selected by the
user.
To facilitate automatic control or to achieve a special trajectory, according to user requirements, can be
configured DC, frequency, step, speed and other special motor to meet the total control requirements.
Products are widely used in electricity, machinery, metallurgy, transportation, coal, chemicals, food processing
and other departments.

Technical specification:

NO.	Type	Trust (kg)	Route (mm)	Speed (mm/s)	Motor		380(V)		Le(mm)		contour dimension (L*W*H)mm	weight (kg)
					Type	Power (w)	Revolution (T/Min)	Electricity (A)	LeMin	LeMax
1	25-20-I	25	200	48	AO25024	40	1400	0.23	369	569	580*125*118	7.5
2	25-20-II	25	200	96	AO25022	60	2800	0.23	369	569	580*125*118	7.5
3	100-40-I	100	400	42	AO5624	120	1400	0.47	640	1040	858*152*206	23
4	100-40-II	100	400	84	AO5622	180	2800	0.52	640	1040	858*152*206	23
5	300-50-I	300	500	42	AO6334	370	1400	1.12	745	1245	998*170*226	35
6	300-50-II	300	500	84	AO6332	550	2800	1.38	745	1245	998*170*226	35
7	500-50-I	500	500	50	AO7134	750	1400	2.02	778	1278	1098*190*226.5	52
8	500-50-II	500	500	100	AO7132	1100	2800	2.6	778	1278	1098*190*226.5	52
9	700-60-I	700	600	50	AO7134	750	1400	2.02	803	1343	1193*200*279	63
10	700-60-II	700	600	100	AO7132	1100	2800	2.6	803	1343	1193*200*279	63
11	1000-60-I	1000	600	50	JO2-21-4	1100	1400	2.68	883	1483	1260*204*271	75
12	1000-60-II	1000	600	100	JO2-21-2	1500	2860	3.24	883	1483	1260*204*271	75
13	1600-80-I	1600	800	50	JO2-31-4	2200	1400	4.9	1063	1863	1535*302*330
14	1600-80-II	1600	800	100	JO2-31-2	3000	2860	8.06	1063	1863	1535*302*330

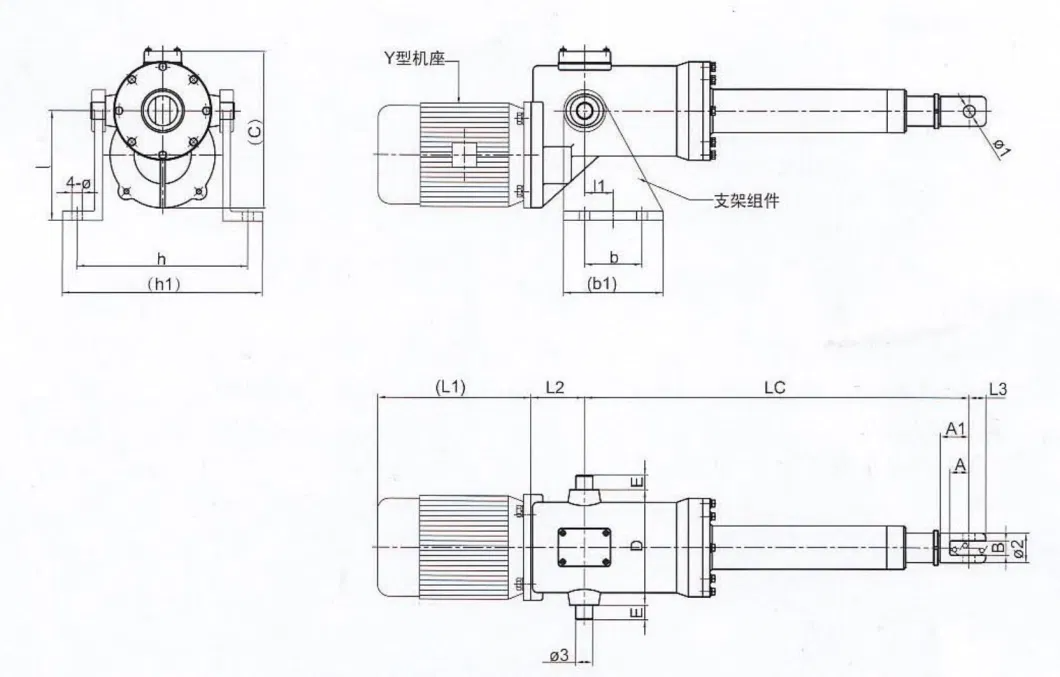

Structure:

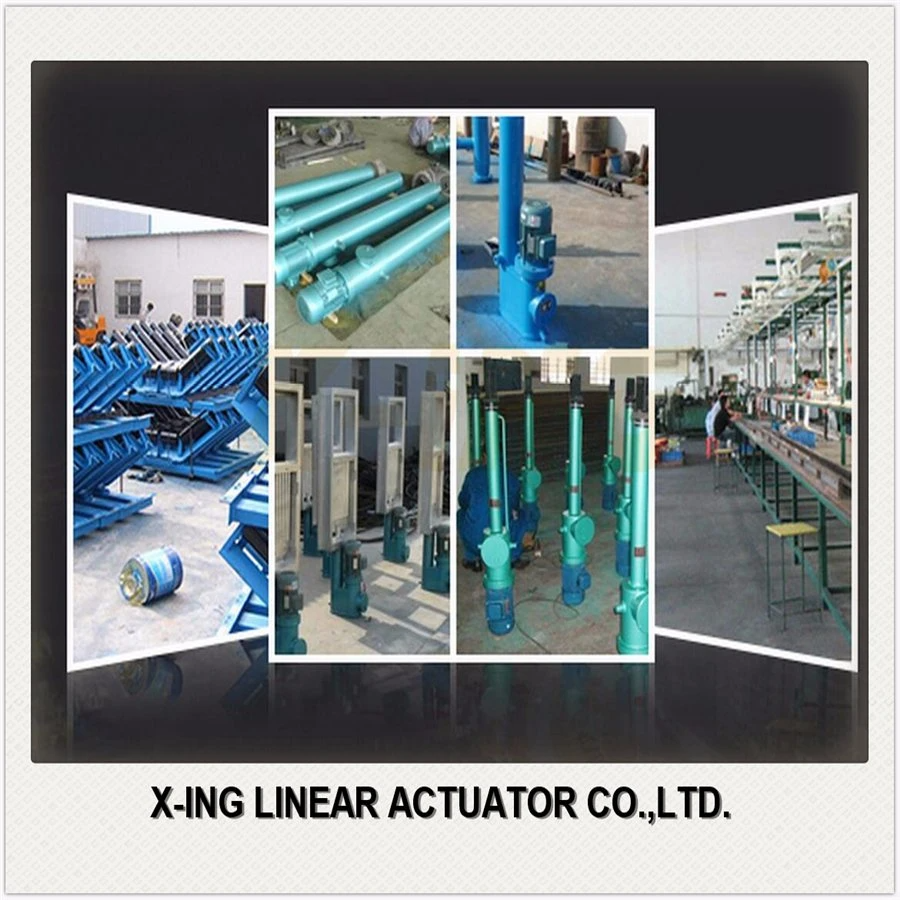

Workshop
