Product Description

DT type electric linear actuator

Introduction:
Our company produced the DT type, HDG series of electric putter (electric cylinder) (linear actuator), Push
(pull) force from 0.25KN to 50KN; push and pull stroke speed were 25mm / s, 42mm / s, 84mm / s. Is a smooth
and accurate action, reliable performance, and has built-in overload protection of the mechanical rotation
device. In a very wide range of areas can replace or replace the cylinder, the cylinder, especially in high
temperature, fire, explosion-proof, pollution-free environmental conditions, is an indispensable supporting
equipment.
The series, the specifications of the push and pull stroke size or speed (0-100mm / s) can be selected by the
user.
To facilitate automatic control or to achieve a special trajectory, according to user requirements, can be
configured DC, frequency, step, speed and other special motor to meet the total control requirements.
Products are widely used in electricity, machinery, metallurgy, transportation, coal, chemicals, food processing
and other departments.

Technical parameters:

Model#	Speed	Thrust	Storke	Motor
DTZ 1600/700	42mm/s	1600kgf	700mm	2.2kW

Structure:

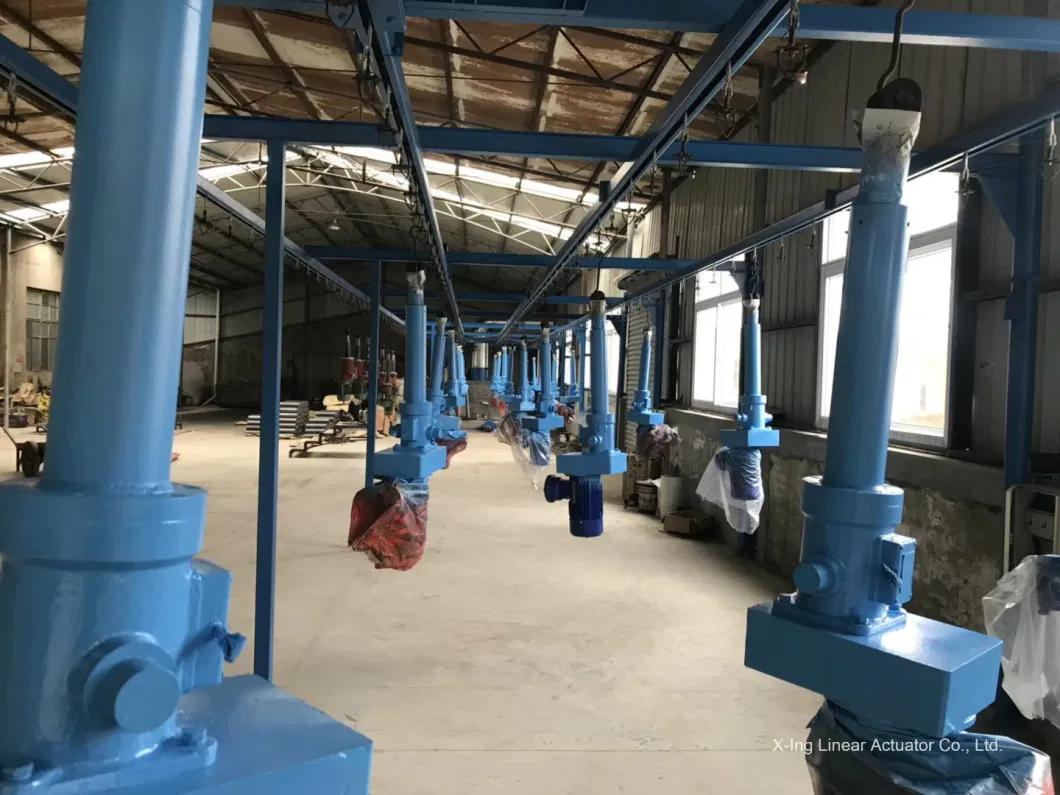

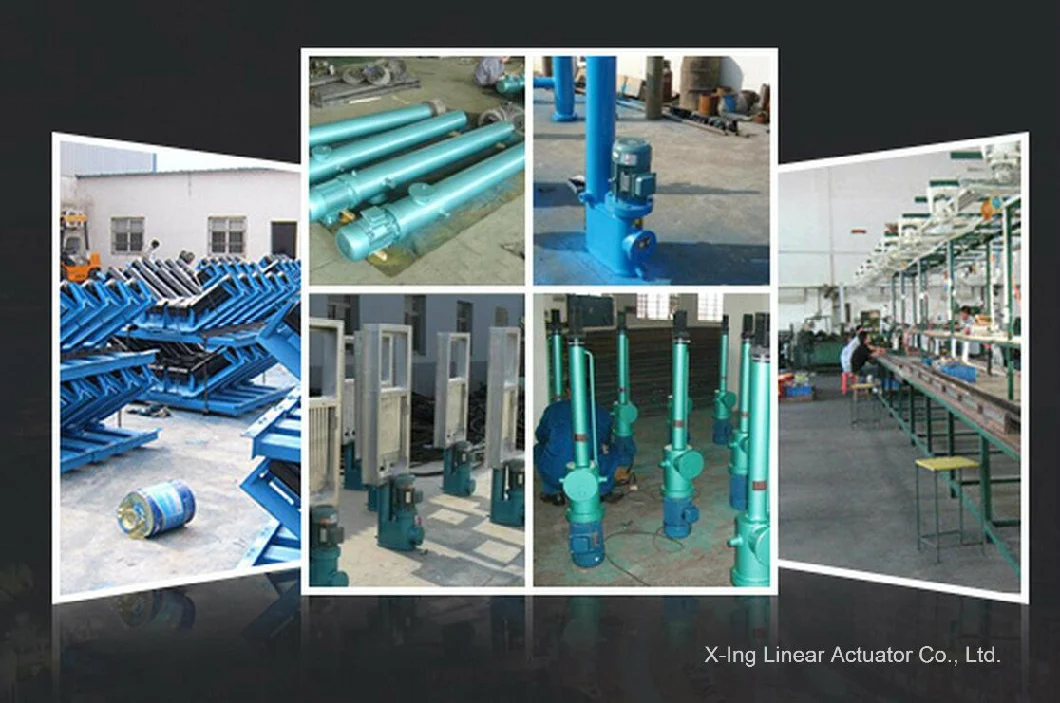

OUR WORKSHOP
