Introduction:

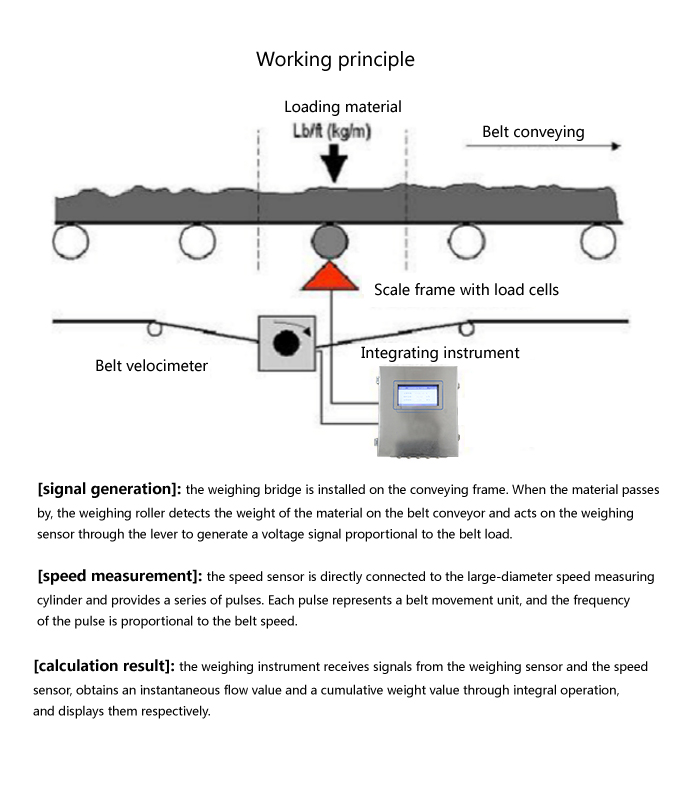

Belt weigher is an automatic weigher that continuously weighs bulk materials on the conveyor belt without subdividing the mass or interrupting the movement of the conveyor belt.

ICS-30 series electronic belt scale standard configuration of speed sensors are 60-12c type speed sensors. Single idler ics-30 weighing bridge is adopted, with lever free and full suspension structure design, which is stable and reliable.

System composition

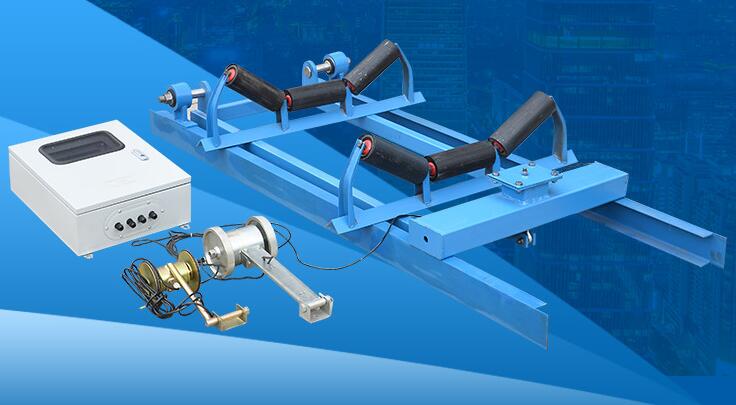

Ics-30a series belt weigher is mainly composed of four parts: ics-30 suspension weighing bridge, weighing sensor, 60-12c speed sensor and 2001 computer integrator. The accuracy is 1%.

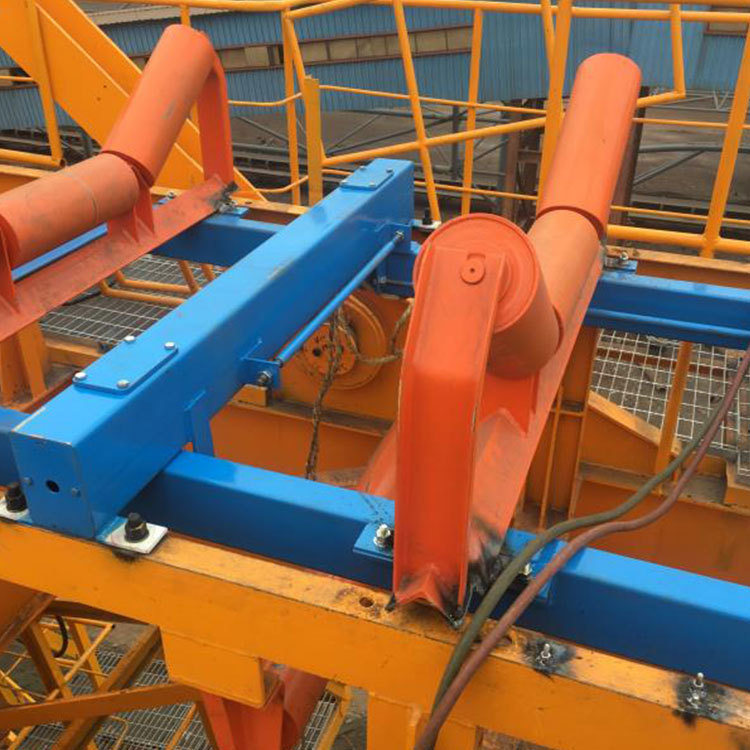

Weighing bridge

The single idler ics-30 weighing bridge is adopted, and the lever free and fully suspended structure design is stable and reliable. The structure design is calibrated with chain code, which is basically close to the physical calibration value. It is fully closed, moisture-proof, dust-proof, anti-corrosion and reduces material accumulation, and will not cause zero instability caused by the use of knife edge device and bearing device. Single piece structure,no moving parts, easy installation, no maintenance.

Speed sensor
Ics-30 series electronic belt scale standard configuration of speed sensors are 60-12c type speed sensors.
System accuracy:≤±1%
Power supply: 220 VAC, 50 Hz
Power: 50W

The weighing sensor
Platform type electronic strain sensor, specially designed strain compensation.
The specific technical parameters are as follows:
Enclosure: sealed protection
Nonlinear: < 0.03% FS
Non repeatability: < 0.01% FS
Creep: < 0.02% FS
Temperature sensitivity: interval: 0.0008% FS / of
zero: 0.0015% FS / of
Overload capacity: 150% of sensor capacity

Weighing control instrument
Adopt 32-bit CPU and 24 bit a / D to speed up the operation speed and improve the metering accuracy;
All data of the belt scale are displayed on the high brightness four line vacuum fluorescent screen;
Menu panel operation mode, in line with people's computer operation habits;
When the relevant data of the belt scale is changed, the original data can be retained for inquiry to reduce human errors;
Provide multi-level password protection to facilitate different users; provide linear compensation to make the belt scale have the same accuracy when the rated load is 25% to 100%;

Optional analog output for displaying material flow, weight or speed;
Analog output delay can be selected for actual control;
The analog input and output board (one or two voltage and current input and output) can be selected for control or compensation;
The RS-232 / RS-485 communication board can be selected, and one of the two modes can be selected from the hardware setting;
Models 2001 and 2105 of 2000 series instruments are available for users;

Model 201 weighing instrument
The display is a double screen digital display, the upper screen shows the cumulative flow, and the lower screen shows the instantaneous flow;
The digital input and output are called out in the form of command code by pressing the key. For example, 01p represents the zero value;
Remote counting can be done in two ways: contact and non-contact. When there is no contact, the output is DC 24 V signal;
The optional communication board is used for upper computer communication, and the communication mode is RS-485 standard port;
Current output board can be selected to output standard 0-20mA or 4-20mA signal;
The output interface can be connected to MP or PP series parallel printer

Please advise your technical specification about existing belt conveyor and provide your technical requirements about belt scale and installation dimension for us,we will supply different types of customized belt scale to you.
